COLOR IDENTIFICATION WIRE
LLC
TM
1-888-GAMMA LITE
LED Technologies for a brighter future
SPECTRUM LEDs
TM
TM
Size
Input Voltage
Power Consumption
Viewing Angle
Output Lums
Wave Length
Color ID Wire
Life Span
Benefits

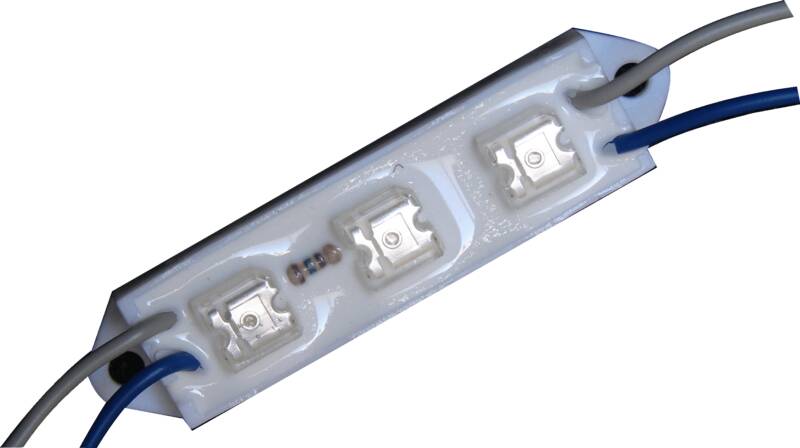

1 7/8" X 5/16" X 1/2" - 3 LEDs Per Mod / 3 Modules Per Foot
12 VDC
.24W Per Mod
180 Degrees
Red Yellow Blue 2.4 / Green 4.5 / White 6.0
Red 623 - Yellow 589 - Blue 465 - Green 520 - White 8000k
Each Module Color Is Identified By The Corresponding Wire Color
Red & Yellow 10 Year / Blue, Green, White 6 Year
Typical life is based on the application, enviroment, installation and the number of hours per day the LED system is illuminated.
UL Approved, Low Power Consumption, High Light Output, Parallel Circuitry, Water Proof, Wide Viewing Angle, Low Cost
Featuring
Copyright 2007 Gamma Glo, LLC

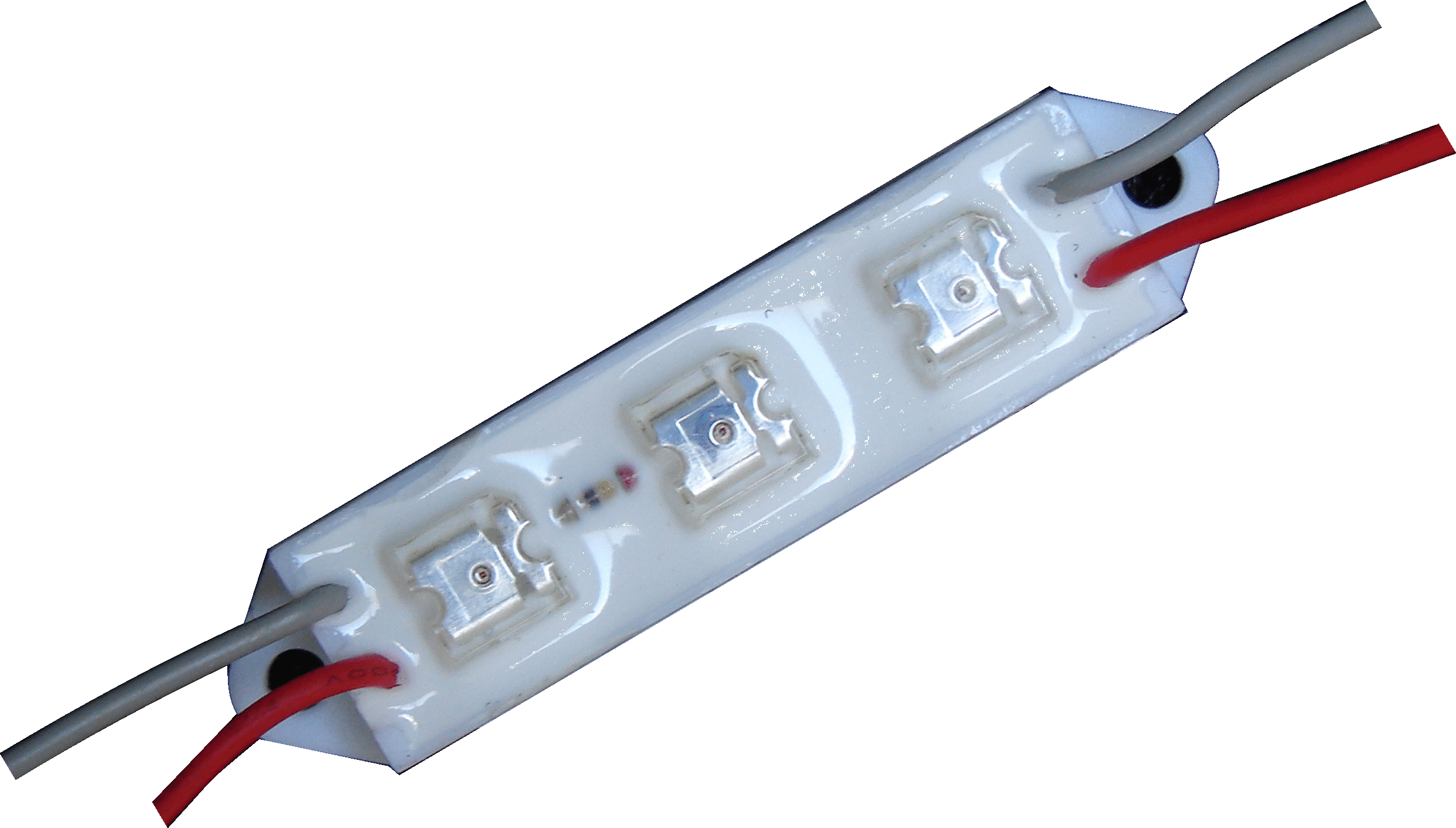

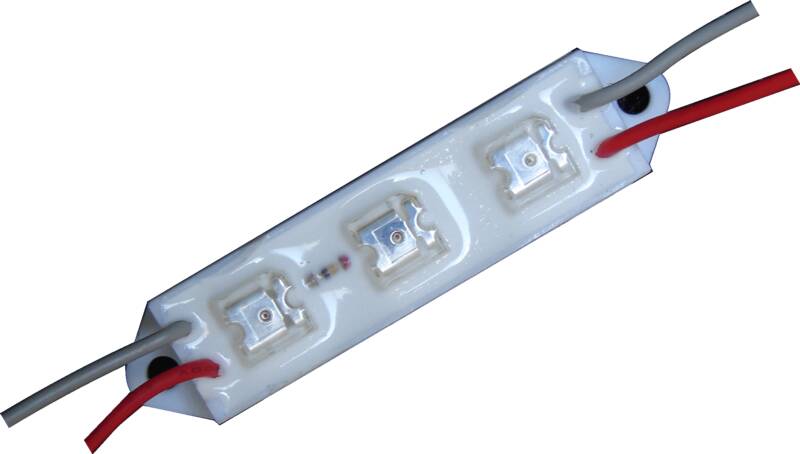

SPECTRUM RED

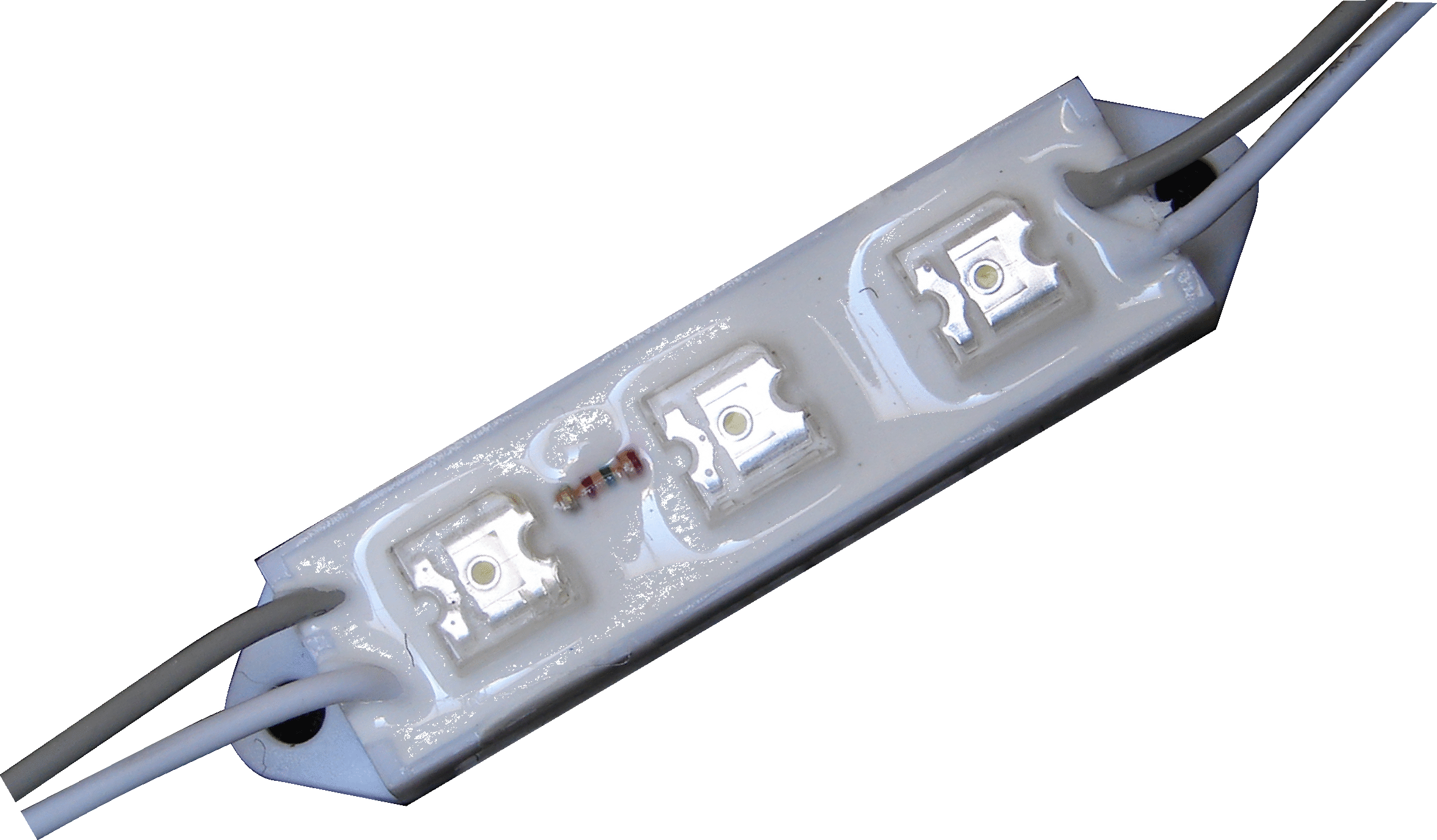

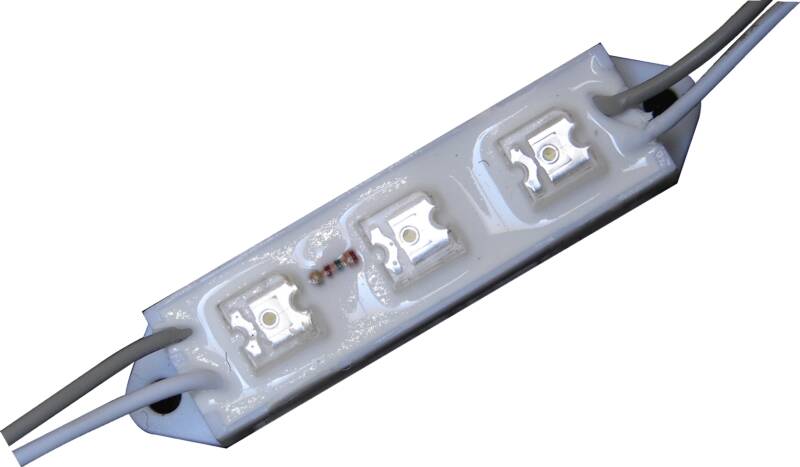

SPECTRUM WHITE
SPECTRUM BLUE

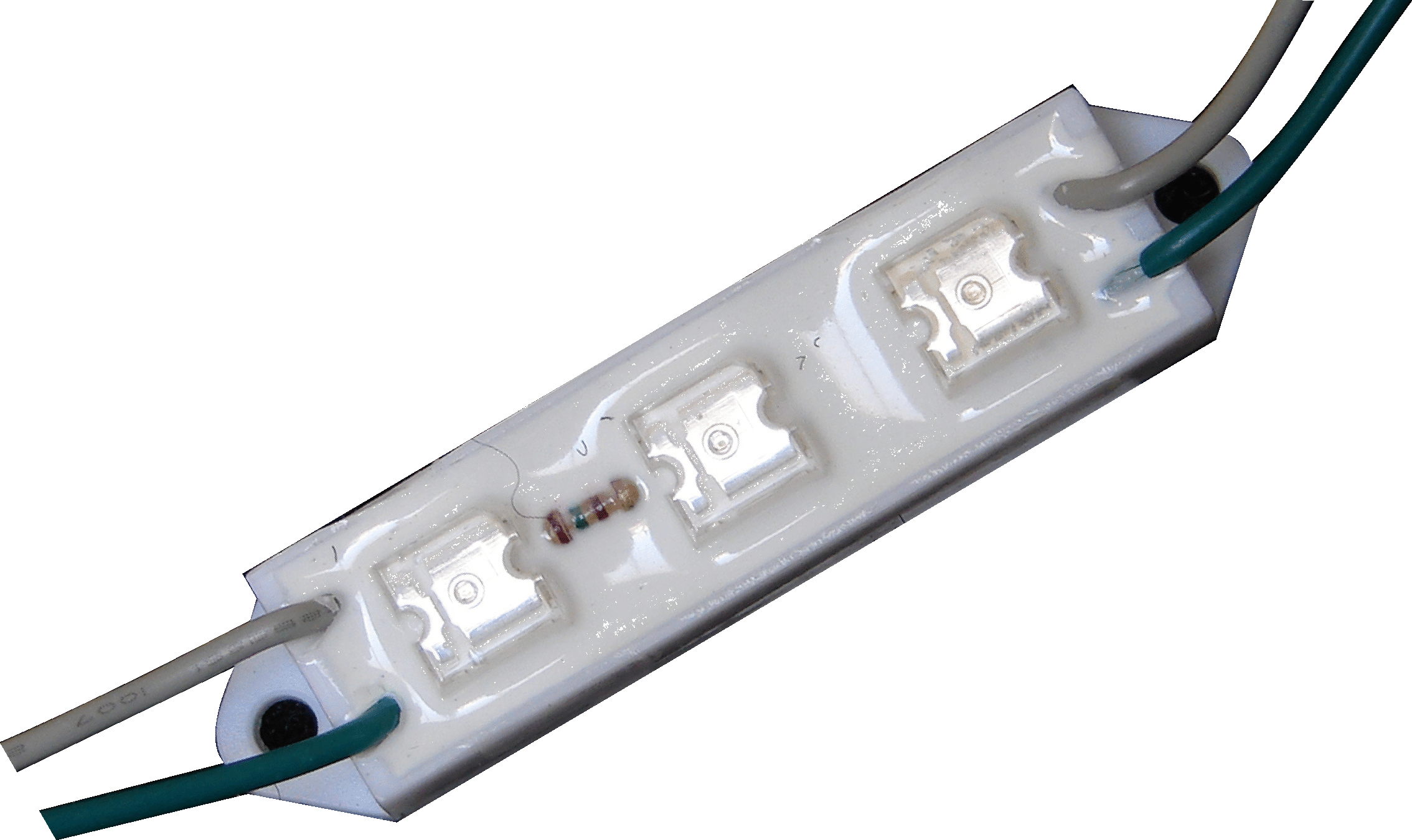

SPECTRUM GREEN

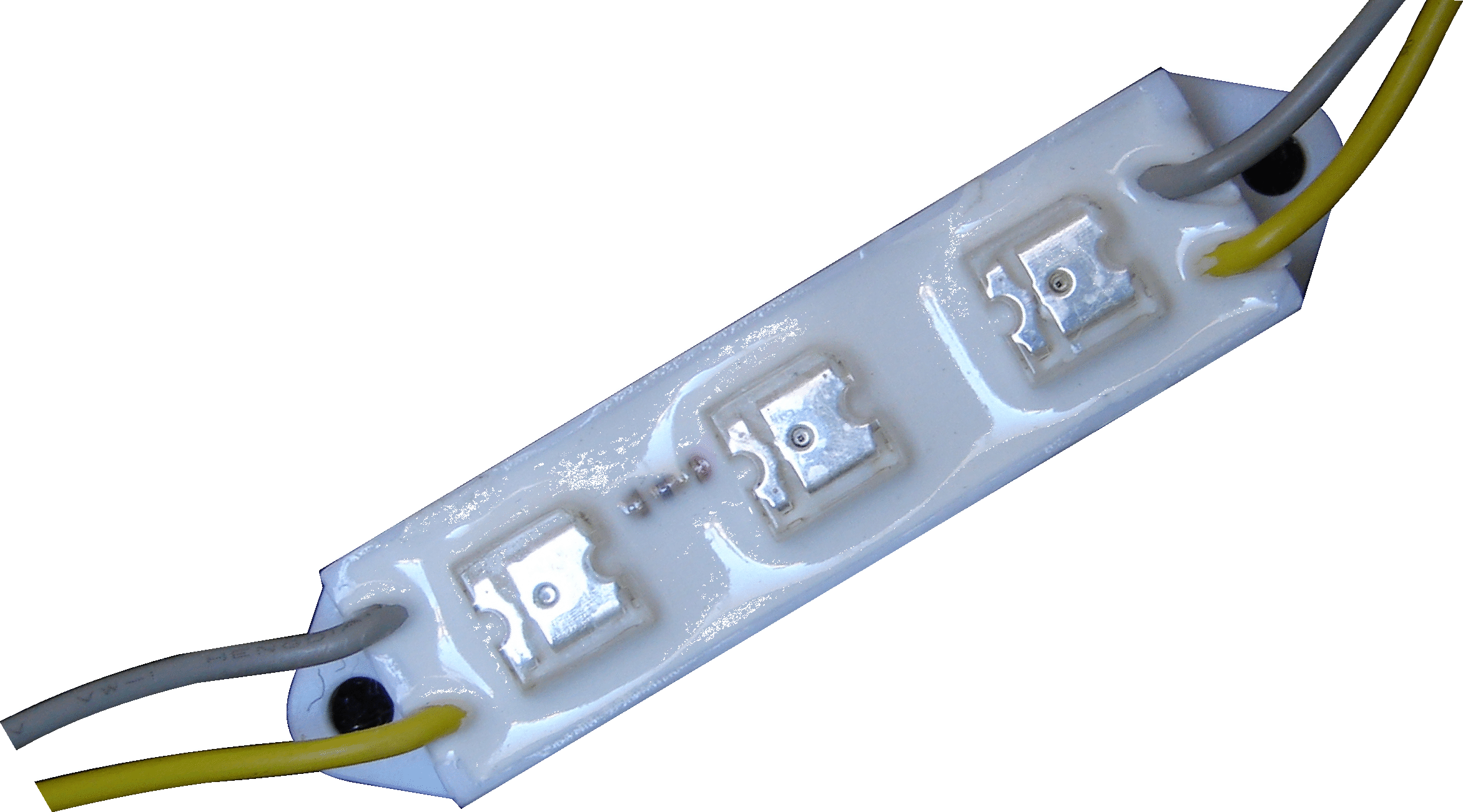

SPECTRUM YELLOW
4 2 6 - 6 2 5 4
